Willie’s Grill & Icehouse, Leander: Twelve Motorized Curtains and Two Steel Doors

• Customer: Willie’s Grill & Icehouse, Leander, Texas. A repeat customer across several locations.
• 12 motorized curtains, each 9 feet (108 inches) tall, mounted inside the openings in 6-inch housings. Widths run from 60 inches to 216 inches. Together they close roughly 161 feet of opening.
• 7 curtains with a clear vinyl window and a solid Seattle Brown border.

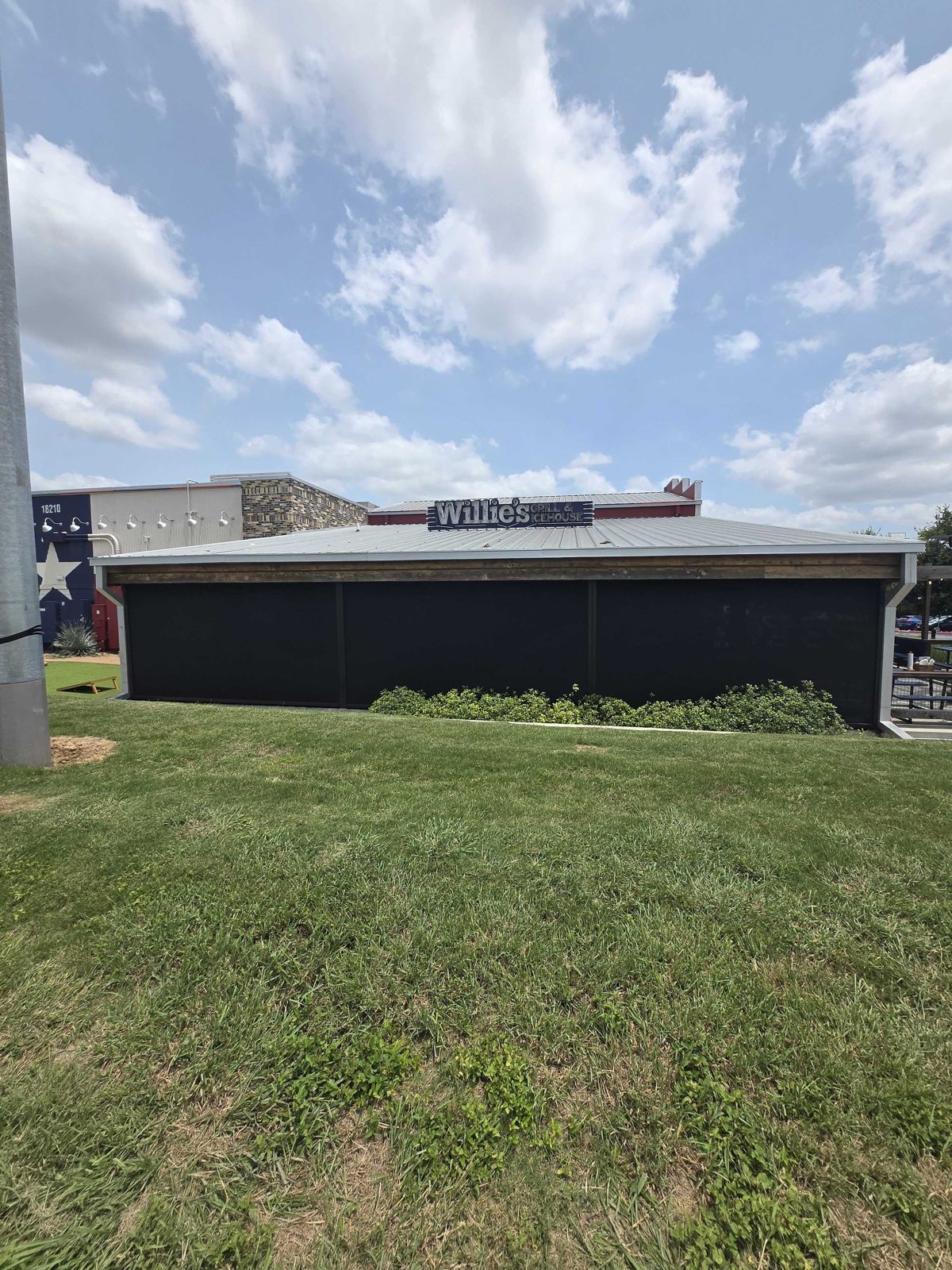

• 5 sun shade curtains in Nano 97 flat black, with no clear section.
• Bronze hood, side tracks and weight bar on every curtain.
• 2 framed steel exit doors with heavy-duty closers, described below.

• No posts. Every curtain mounts in an existing opening of the patio structure.

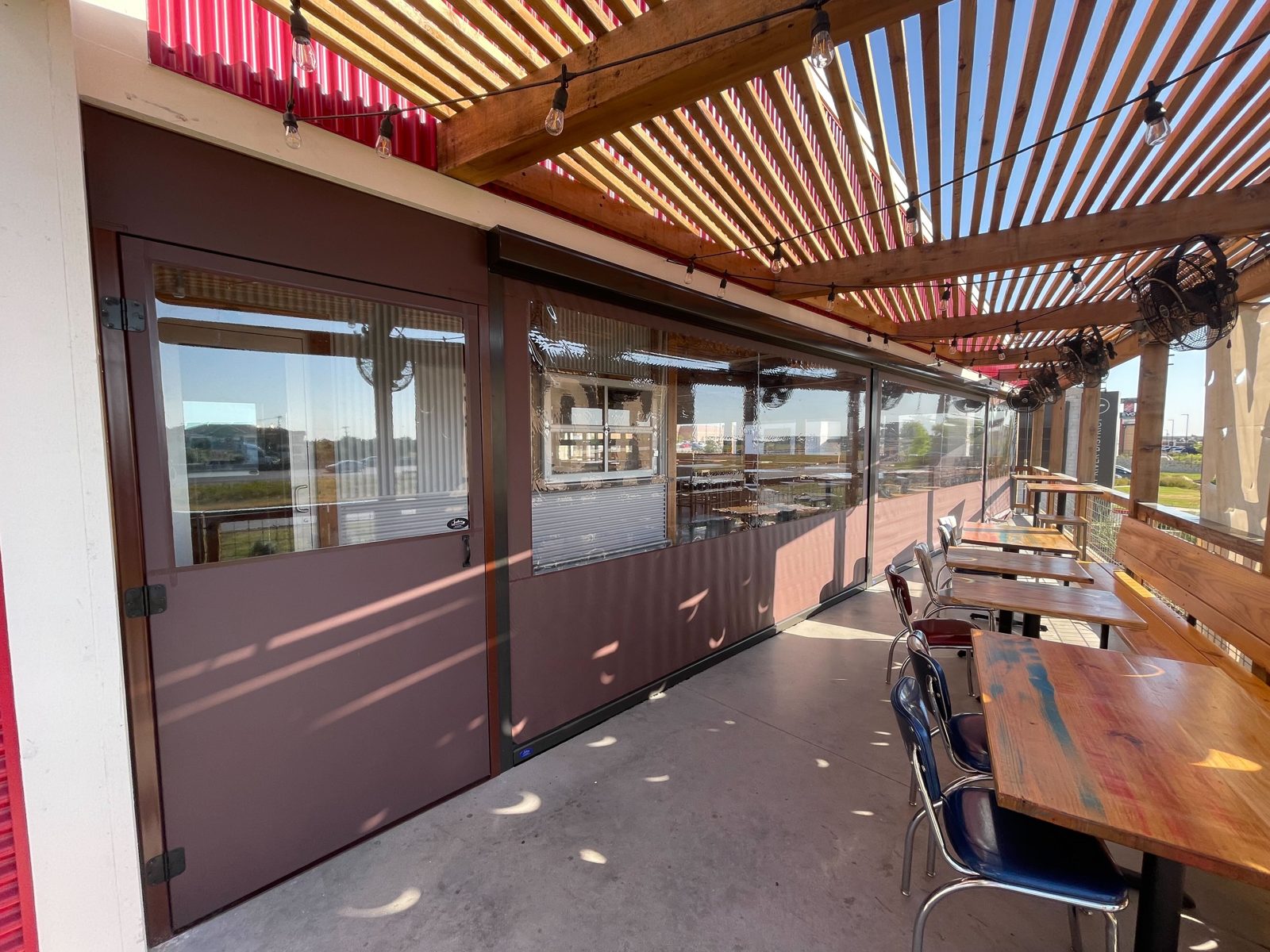

Most of the patio opens and closes with a button. The two exits are different: they are framed steel doors, fabricated to our drawings.

Each door is a 2x2 steel tube frame: an 84-inch door set in a 103-inch frame, with a 19-inch upper section above it. The frames are powder coated Chocolate Brown (RAL 8017); the curtain borders are Seattle Brown. A flat steel bar across the bottom of each door keeps it rigid, a door stop catches it on the swing, and the heavy-duty closer brings it shut behind every guest. At the base, 3-inch spikes anchor each frame into the concrete.
